Cassette vs Wall-Mounted Aircond: Which Is Better for Your Business?

Choosing the Right Aircond Type for Your Business

You know how you walk into a cafe in Damansara Uptown at 2 PM, and despite the aircond humming loudly, you’re still sweating? That is rarely a problem with the machine itself; it is usually a problem with the application.

One of the most common questions we get from business owners in Petaling Jaya is whether they should install ceiling cassette units or wall-mounted split units. The answer depends on your space, budget, business type, and strictly speaking, your long-term maintenance strategy. After installing and maintaining both types across hundreds of commercial premises over 20 years, we can give you the honest comparison that salespeople often skip.

Understanding the Two Types

Ceiling Cassette Units

Ceiling cassette units are mounted flush with the ceiling and distribute cool air in four directions (known as 4-way blow). They are the standard choice for commercial spaces with suspended ceilings, including offices, restaurants, retail shops, and clinics.

The indoor unit sits inside the ceiling space with only the decorative panel visible from below. This gives a clean, professional appearance and allows the aircond to cool the room more evenly since air flows outward from a central position.

Wall-Mounted Split Units

Wall-mounted units are the same type used in most Malaysian homes. They are mounted high on a wall and blow cool air in one direction, using motorised louvres to sweep the airflow across the room. They are simpler to install, cheaper to purchase, and easier to maintain.

Head-to-Head Comparison

Cooling Coverage and Airflow

Cassette wins hands down. A ceiling cassette unit distributes air in four directions (360 degrees on newer models like the Daikin FCFC series) from a central ceiling position. This creates a “cooling umbrella” effect that eliminates the hot spots common with wall units.

We often see businesses try to cool a 20x40 ft shop lot with two wall units at opposite ends. The result is almost always a “freezing zone” directly under the unit and a “sweat zone” in the middle of the room. A single 2.5HP or 3.0HP cassette placed in the centre solves this immediately.

Wall-mounted units have a limited throw distance, typically 3 to 4 metres effectively. If your office or shop is wider than that, the air simply won’t reach the other side without cranking the fan speed to maximum, which creates noise and drafts.

Installation Cost

Wall-mounted wins. If upfront cash flow is your primary concern, wall-mounted units are significantly cheaper.

Unit Type	Estimated Purchase Price (2.0HP)	Installation Cost (2025/26 Estimates)	Total Estimated Cost
Wall-mounted split	RM1,800 - RM2,800	RM280 - RM450	RM2,080 - RM3,250
Ceiling cassette	RM4,000 - RM5,500	RM600 - RM900+	RM4,600 - RM6,400+

Note: Prices vary by brand (e.g., Acson, Panasonic, Daikin) and piping length.

Cassette installation is more expensive because it involves cutting the ceiling grid, installing support rods (hangers) into the concrete slab, and running more complex drainage piping.

Maintenance Cost & Reality

Wall-mounted wins on simplicity. Here is the insider truth: Cassette units rely on a drain pump to push water up and out of the unit. Wall-mounted units typically use gravity drainage.

Why does this matter? Mechanical pumps eventually fail. When a cassette’s drain pump fails or gets clogged with “jelly” (a common algae buildup in our humid climate), the unit will leak water directly onto your customers or merchandise below.

Service	Wall-Mounted	Ceiling Cassette
Standard cleaning	From RM85	From RM150
Chemical wash	From RM160	From RM280
Major Overhaul	From RM350	From RM500

We advise our commercial clients to schedule chemical cleaning for cassettes at least twice a year to prevent pump failures.

Aesthetics

Cassette wins. In a business environment, appearance matters. Ceiling cassette units are virtually invisible — only the flat decorative panel is visible, and it blends with the ceiling. Wall-mounted units are prominent visual elements that can look out of place in upscale restaurants, professional offices, or retail showrooms.

For businesses where interior design is important (restaurants, boutiques, salons, medical clinics), the cleaner look of a cassette unit is often worth the extra cost.

Energy Efficiency (The Tariff B Factor)

It depends on usage. With TNB’s 2025 commercial tariff structures increasingly unbundling charges (separating energy, capacity, and network charges), efficiency is critical.

A cassette unit often wins on system efficiency because one unit does the work of two wall mounts. Instead of running two 1.5HP wall units (total 3.0HP) to cover a large room, a single 2.5HP cassette might do the job. This lowers your total connected load.

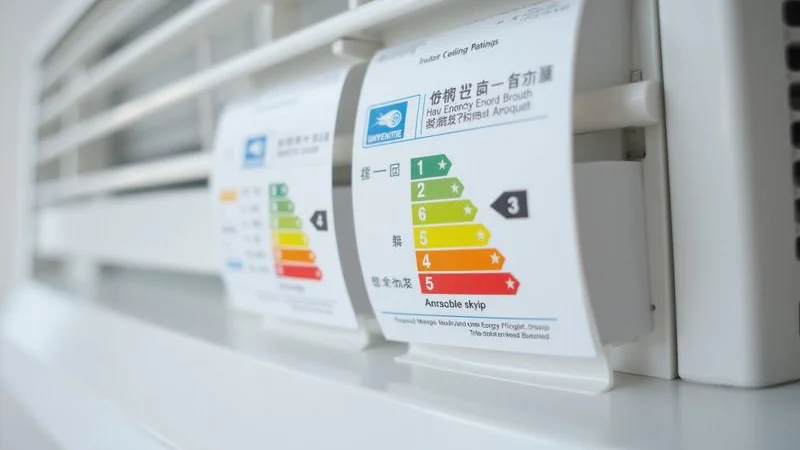

Look for the CSPF (Cooling Seasonal Performance Factor) rating on the label. As of 2026, the Malaysian standard for 5-star efficiency has risen. A 5-star inverter cassette will offer significant savings over a 3-star non-inverter wall unit, especially if you operate 10+ hours a day.

Noise Levels

Cassette wins slightly. Because the indoor unit is enclosed within the ceiling space, cassette units tend to be quieter in the occupied area. The noise is absorbed by the ceiling panels and the distance between the unit and the occupants. Wall-mounted units are closer to ear level and their noise is more noticeable, especially in quiet environments like offices, clinics, or fine-dining restaurants.

However, cassette units can create more noise in the ceiling space itself, which may be noticeable in buildings with thin ceiling panels.

Best Choice by Business Type

Based on our experience servicing commercial premises across Petaling Jaya, here are our recommendations:

Restaurants and Cafes: Ceiling Cassette

Large open dining areas benefit enormously from the even four-way distribution of ceiling cassettes. The clean aesthetics also matter for customer perception. Most restaurants in Damansara Uptown and SS2 that we service use cassette units. For F&B outlets, we recommend a commercial maintenance contract with monthly chemical wash to handle grease buildup.

Small Offices (Under 400 sq ft): Wall-Mounted

For small offices, meeting rooms, and co-working pods, wall-mounted units are more cost-effective and perfectly adequate. A single 1.5HP to 2.0HP wall-mounted unit can comfortably cool a standard office of 200 to 350 square feet.

Large Offices (Over 400 sq ft): Ceiling Cassette

Open-plan offices, conference rooms, and large shared workspaces benefit from cassette units. Even cooling prevents the “musical chairs” effect where staff fight over desks closer to the aircond and avoids the discomfort of cold blasts directly beneath a wall-mounted unit.

Retail Shops: Depends on Layout

Retail shops in malls typically already have cassette units as part of the building’s system. For standalone retail outlets in shophouses, the choice depends on ceiling height and layout. High-ceilinged spaces work well with cassettes, while narrow shophouses with low ceilings may be better served by wall-mounted units.

Clinics and Professional Services: Ceiling Cassette

The quiet operation and discreet appearance of cassette units make them ideal for medical clinics, dental offices, law firms, and accounting practices where a professional environment is essential.

Making the Right Decision

The best aircond type for your business is the one that matches your space, budget, and operational needs. Do not let a salesperson push you toward the more expensive option if a wall-mounted unit will do the job perfectly well. Conversely, do not underinvest in cooling for a large commercial space — an underpowered system costs more to run and fails sooner.

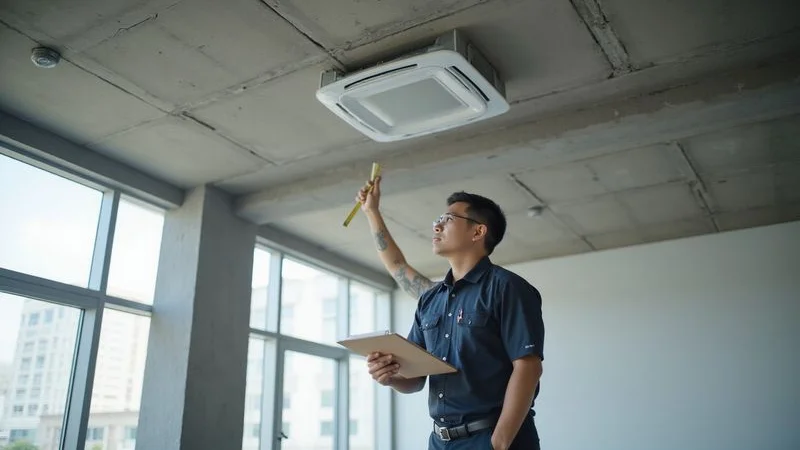

If you are unsure which type suits your business premises, PJ Kool Aircond Service offers free on-site assessments for commercial clients in Petaling Jaya. We will evaluate your space, recommend the right type and capacity, and provide a transparent quote for installation and ongoing maintenance.
